GSM DCS 3G 4G Quad Band Mobile Phone Booster Repeater Amplifier
Descriptions:
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.

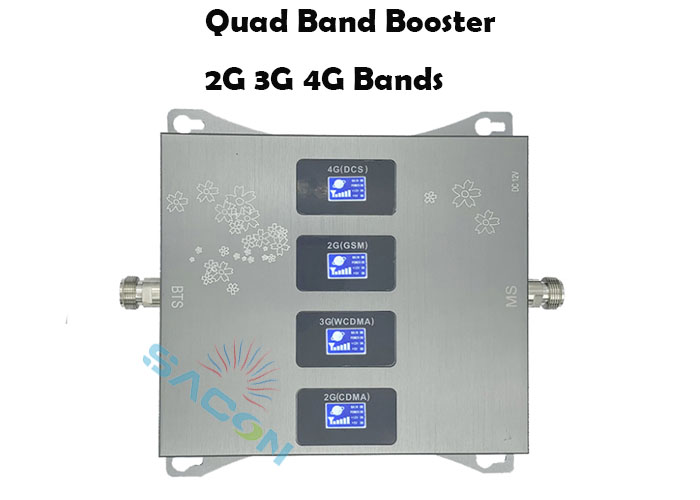

Today let's introduce our 900 1800 2100 2600 quad band mobile signal booster, this mobile phone repeater is sliver color. It is widely used in indoor, such as house, office, hotel, lift and some places which has low signals. This mobile signal amplifier has very nice appearance and lcd display. It can boost 800mhz, 900mhz, 1800mhz, 1900mhz, 2100mhz, 2600mhz signals. It is popular and hot in many countries.
Welcome to contact us with more details!
Features:
1. Quad bands signal, support 2g 3g 4g GSM850, GSM, DCS and 3G.
2. Compact size, Led display.
3. Easy to operation.
4. 1 year warranty.
Specifications:
| Frequency Range | Uplink | Downlink |
| GSM 900MHz | 890-915MHz | 935-960MHz |
| DCS1800MHz | 1710-1785MHz | 1805-1880MHz |
| WCDMA2100MHz | 1920-1980MHz | 2110-2170MHz |
| 4G LTE2600Mhz | 2500-2570MHz | 2620-2690MHz |
| Max. Gain | 60dB ±2dB | 65dB±2dB |
| Max. Output Power | 17dBm±2dB | 20dBm±2dB |
| Bandwidth | Wide Band |
| Ripple in Band | ≤ 8dB |
| Noise Figure | ≤ 6dB |
| VSWR | ≤ 2.0 |
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm |
| 1~12.75GHz | ≤ -30dBm |
| Time Delay | ≤ 1.5 μs |
| MTBF | > 50000 hours |
| Impedance | 50 ohm |
| Power Supply | AC 90-240V,DC 12V/3A |
| Power LED | Power indicator |
| Alarm LED | Red | Strong input signal |
| Green | Normal |
| Mechanical Specification |
| RF Connector | N-Female |
| Cooling | Heatsink Convection cooling |
| Humidity | < 90% |
| Operating Temperature | -10°C ~ +55°C |
| Environment Conditions | IP40 |
| Installation Type | Wall Installation |
| Size | 196*182*22mm |
| Weight | 1.5Kg |
Application:
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, etc.
Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)

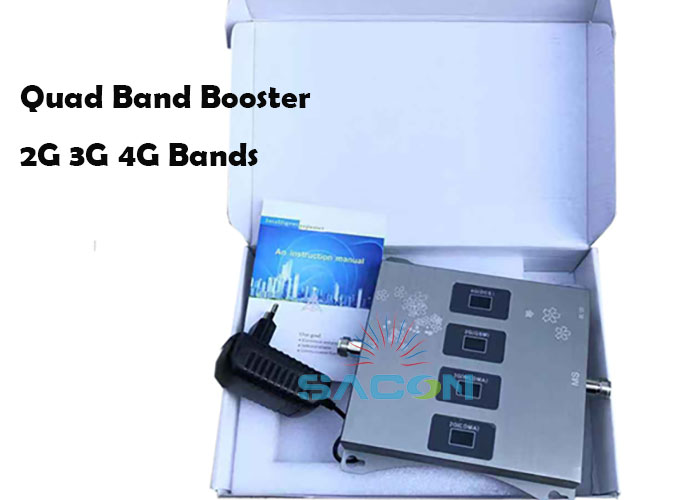

Standard Package:
1) Power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
5) Mobile phone signal booster 1PCS
