8 Bands Drone Signal Jammer 150w High Power Up To 1km Long Distance
Description:
Drone jammer SA-008B-M is the advance version of Drone UAV Signal Jammer SA-006B-M, for those
who would like to jam even more advanced drone frequencies. The jamming range is between 400 - 1000
meters. Jammer can come either with 500m long exteranl omni-directional antennas or with directional
patch panel antennas (for those who would like to increase the jamming effect in the particular area).
Drone Jammer provides a safe countermeasure against a wide range of drone models. It allows for a
controlled management of drone payload such as explosives, with no damage to common drones models or
surrounding environment due to the drones generally responding via a vertical controlled landing on the
spot, or returning back to the starting point (assisting to track the operator).
Features:
Jamming radius: 400-1000 meters
Total output power: 150W
Jamming frequencies: Remote controls, GPS L1, L2, WIFI, Bluetooth, 5.8GHz, VHF, UHF
Cooling system: Inernal fan system prevent jammer from overheating
Power supply: AC110 or 220-240V /DC 27V
Dimension: 560 x 235 x 95mm
Weight: 11Kg
Specifications:
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | 433 | 433MHz | 20w |
| 2 | Remote Controls | 868-912MHz | 25w |
| 3 | Wifi & Bluetooth | 2400-2500MHz | 20w |
| 4 | GPS L2 | 1227MHz | 15w |
| 5 | GPS L1 + GLONAS L1 | 1570-1620MHz | 40w |
| 6 | Wifi | 5.8GHz | 2w |
| You can choose any frequency from this range: GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W, LoJack 173MHz: 30W |
| Total output power: 150W |
| Jamming radius: 400-1000 meters |
| Jamming frequencies: Remote controls, GPS L1, L2, WIFI, Bluetooth, 5.8GHz |
| Cooling system: Inernal fan system prevent jammer from overheating Power supply: AC110 or 220-240V /DC 27V Dimension: 560 x 235 x 95mm |
| Weight: 11Kg |
Package contents:

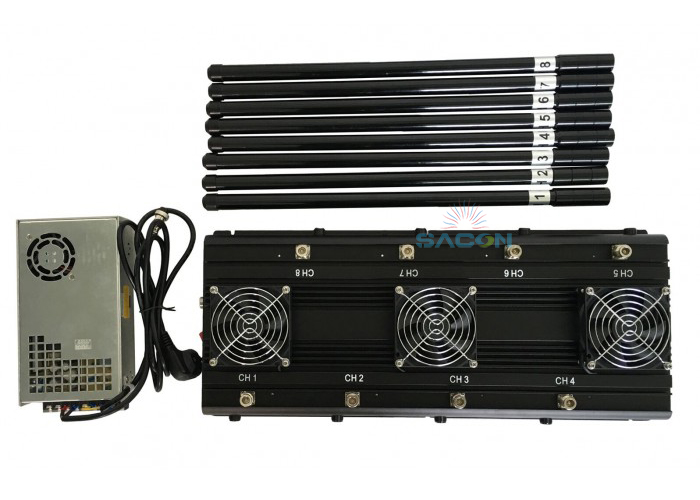

1pc Desktop Jammer
1pc AC 110 or 220V DC 12V or 27V 20A power supplier
8pcs Antennas Omni 500mm long
Additional antenna options:
- Directional External Patch Panel Antennas
- Omni car magnetic antenna bases
Power source additional order options:
- External battery that can work 1 hour ( 24V/20AH LiFePo4 ) + Charger
- DC 12V to AC 220V inverter 2000W, to use normal car battery DC 12/80-100AH
