4 Bands 10dBm Mobile Phone Signal Booster For GSM DCS 3G 4G Signals
Descriptions:
Quad-Band Signal Booster series is an ideal solution for three wireless system in small/medium businesses and home users looking to enhance indoor 2G&3G&4G wireless connectivity. It is connected via coaxial cable to Quad-Band Donor Antenna and Service Antenna, Quad-Band Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area.
Features:
1. 4 bands frequency 2G, 3G & 4G LTE, suitable for most of countries;
2. 65dB gain, for 1 or 2 rooms, small house, office....;
3. CNC,ALC technology,anti-interference,ensure high-quality signal;
4. Small size, Safe & Power saving.
-----4BandRepeater(Band8/3/1/7)
BAND8---900MHz
Up Link(RX): 890~915 MHz
Down Link(TX): 925~960 MHz
Bandwidth: 25 MHZ
BAND1---2100MHz
Up Link(RX): 1920~1980 MHz
Down Link(TX): 2110~2170 MHz
Bandwidth: 60 MHZ
BAND3---1800MHz
Up Link(RX): 1710~1785 MHz
Down Link(TX): 1805~1880 MHz
Bandwidth: 75 MHZ
BAND7---2600MHz
Up Link(RX): 2500~2570 MHz
Down Link(TX): 2620~2690 MHz
Bandwidth: 70 MHZ
Specifications:
| Frequency Range | Uplink | Downlink |
GSM 900MHz + DCS 1800MHz +WCDMA 2100MHz+4G 2600MHz
(Band 8 + Band 3 + Band 1 + Band 7) | 890-915/1710-1785/1920-1980/2500-2570MHz | 935-960/1805-1880/2110-2170/2620-2690MHz |
| Max. Gain | 60dB±2dB | 65dB±2dB |
| Max. Output Power | 7dBm±2dBm | 10dBm±2dBm |
| Band width | Wide Band |
| Gain Flatness: | ≤5dB (P-P) |
| ALC: | If the input power is increased by 10dB more, the output power should be kepte within 2dB or closed |
| Group Delay: | ≤2μs |
| Noise Figure | ≤8dB (At the max. gain) |
| VSWR | ≤ 2.0 |
| Impedance(RF Connectors): | 50Ω(SMA) |
| Range for Gain Regulation: | 15dB |
| IF Board CPU Version: | SHAK5001 V1.1 |
| Spurious Emission: | 9KHz~1GHz: -36dBm 1GHz~12.75GHz: -30dBm |
| Power Supply | Input AC110~240V, Output DC5V/2A |
| EVM: | EVM≤5% |
| Power Consumption: | ≤6W |
| Repeater size: | 15.1 * 10.4 * 1.4cm |
| Weight | 380g |
Application:
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop. Etc.
Package contents:
1 x SA-QB4 4bands repeater
1 x 10m Coaxial cable 1 x Indoor antenna
1 x Outdoor antenna 1 x power supply
1 x user manual
Product Tags:
|
|

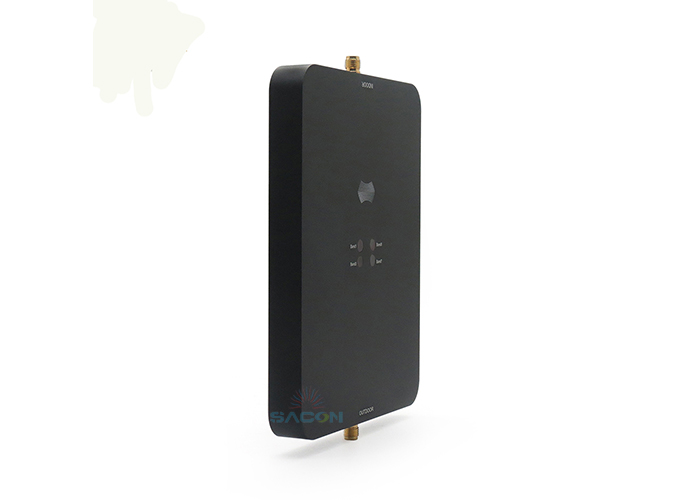

4 Bands 10dBm Mobile Phone Signal Booster 65dB Gain For GSM DCS 3G 4G Signals Images
|
