Waterproof 240w Powerful 2000m Long Distance Outdoor Drone Signal Jammer Factory Manufacturer
Outdoor waterproof drone jammer.pdf

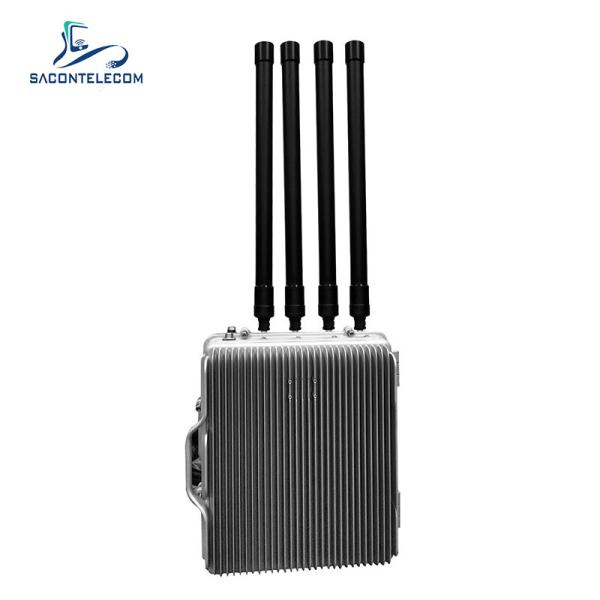

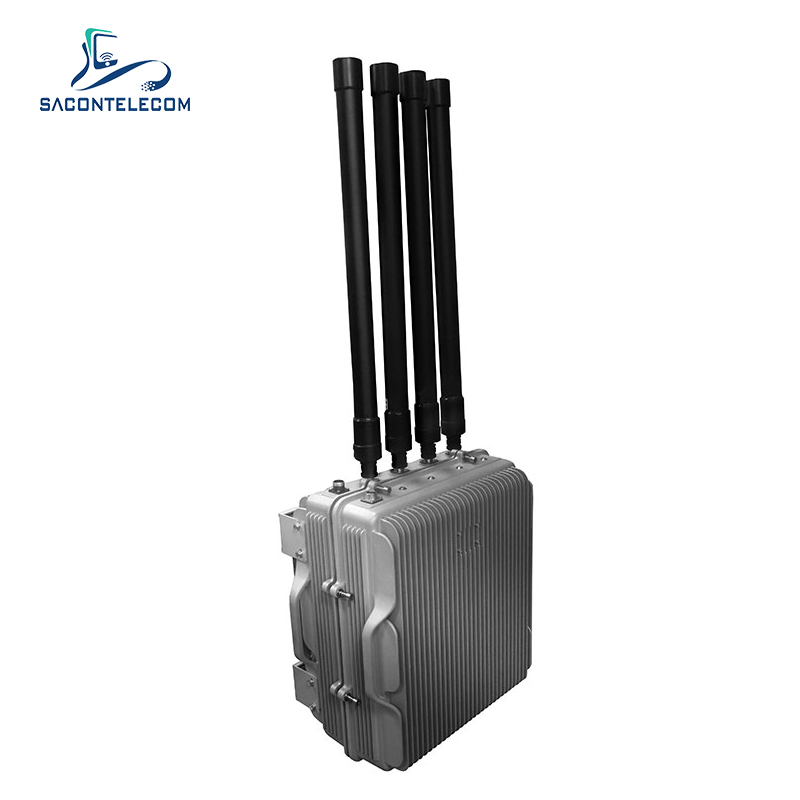

Description of waterproof outdoor drone jammer:
This is high-power stationary drone countermeasure equipment. It adopts cast aluminum chassis as the main machine shell, which is wear-resistant, scratch-resistant, waterproof, and is more conducive to heat dissipation.
In order to achieve a better interference effect, this machine replaces the original omnidirectional fiberglass antenna with a multi-port plate-shaped directional antenna. The combination of four directional antennas makes the device capable of omnidirectional interference. The interference range can reach 1000-2000 meters, and the frequency and power of UAV countermeasure equipment can be adjusted according to shielding needs, and customization supported.
Features of 240w high power jammer:
1. IP 65 level waterproof;
2. Omni high gain antennas;
3. Long distance, up to 2000m range;
4. 24 hour 7 day non stop use, unmanned monitoring;
5. Effective RF jamming module separately modulation;
6. Computer monitor function;
7. Automatic working;
8. Force drone return to the taken-off place;
9. OEM and ODM is available.
Specifications of cell phone jammer:
| Product Type | Model: SA-WDJ04 Counter Drone Solution Anti Drone System |
| Jamming Range | 1000-2000 meter radius |
| Working Channels | 2.4GHz: 2400-2485MHz, 120W, 51±1dB 2.4GHz: 2400-2485MHz, 40W, 46±1dB 5.8GHz: 5725-5850MHz, 30W, 45±1dB 5.8GHz: 5725-5850MHz, 30W, 45±1dB |
| Total Output Power | 220 W |
| Direction | Omni directional 360 Degree |
| Body Size | Body 45*35*25 CM (antenna 6*2 CM) |
| Body Weight | 25.0 kg |
| Working Temperature | -20℃~75℃ |
| Working Humidity | 35~95% |
| Power Consumption | ≤600W |
| Power Input | AC110V~240V |
| Power Output | DC 24V / 25A |
Applications of anti drone jammer system:
Counter Drone Solution Anti Drone System, military base station, police prison system, government key building,
oil depot system, farm feeding system, plant protection, building protection, water protection.
Package Lists of RF signal jammer blocker:
1pcs waterproof drone jammer;
4pcs omni antennas
Product Tags:
|
|
Outdoor Drone Signal Jammer Waterproof 240w Powerful 2000m Long Distance Images
|
