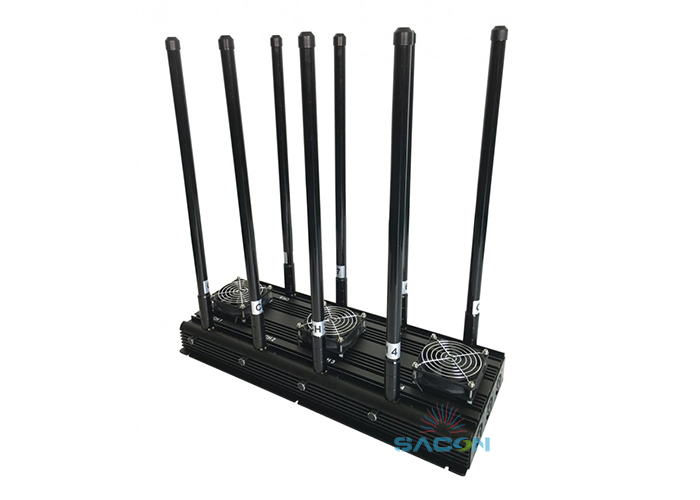

8 Bands Drone Signal Jammer 150w High Power Up To 1km Long Distance
Description:
1. Drone jammer SA-008B-M is the advance version of Drone UAV Signal Jammer SA-006B-M, for those
who would like to jam even more advanced drone frequencies.
2. The jamming range is between 400 - 1000 meters. Jammer can come either with 500m long exteranl
omni-directional antennas or with directional patch panel antennas (for those who would like to increase the
jamming effect in the particular area).
3. Drone Jammer provides a safe countermeasure against a wide range of drone models.
4. This drone jammer allows for a controlled management of drone payload such as explosives, with no
damage to common drones models or surrounding environment due to the drones generally responding via
a vertical controlled landing on the spot, or returning back to the starting point (assisting to track the
operator).
Features:
| Jamming radius: 400-1000 meters
| Total output power: 150W
| Jamming frequencies: Remote controls, GPS L1, L2, WIFI, Bluetooth, 5.8GHz, VHF, UHF
| Cooling system: Inernal fan system prevent jammer from overheating
| Power supply: AC110 or 220-240V /DC 27V
| Dimension: 560 x 235 x 95mm
| Weight: 11Kg
Application:
Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms,
courthouses, labor camp, all kinds of military important places, forbid aerial photography by use of drone,
etc
Specifications:
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | 433 | 433MHz | 20w |
| 2 | Remote Controls | 868-912MHz | 25w |
| 3 | Wifi & Bluetooth | 2400-2500MHz | 20w |
| 4 | GPS L2 | 1227MHz | 15w |
| 5 | GPS L1 + GLONAS L1 | 1570-1620MHz | 40w |
| 6 | Wifi | 5.8GHz | 2w |
| You can choose any frequency from this range: GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W, LoJack 173MHz: 30W |
| Total output power: 150W |
| Jamming radius: 400-1000 meters |
| Jamming frequencies: Remote controls, GPS L1, L2, WIFI, Bluetooth, 5.8GHz |
| Cooling system: Inernal fan system prevent jammer from overheating Power supply: AC110 or 220-240V /DC 27V Dimension: 560 x 235 x 95mm |
| Weight: 11Kg |
Package contents:
1pc Desktop Jammer
1pc AC 110 or 220V DC 12V or 27V 20A power supplier
8pcs Antennas Omni 500mm long
Additional antenna options:
- Directional External Patch Panel Antennas
- Omni car magnetic antenna bases
Power source additional order options:
- External battery that can work 1 hour ( 24V/20AH LiFePo4 ) + Charger
- DC 12V to AC 220V inverter 2000W, to use normal car battery DC 12/80-100AH
